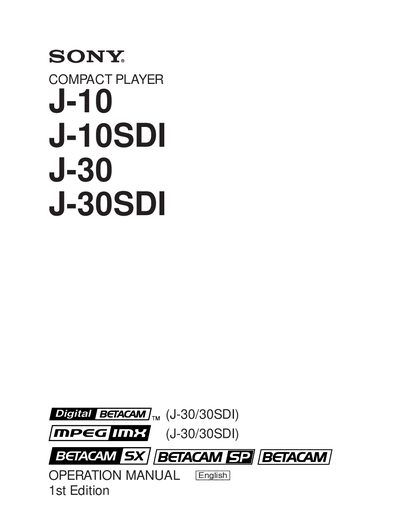

This manual introduces the functions and features of J-10, J-10SDI, J-30 and J-30SDI, and the methods of use and maintenance
The Sony Compact Player series (J-10, J-10SDI, J-30, J-30SDI) are desktop‑sized video players that handle 1/2‑inch Betacam, Betacam SP, Digital Betacam, MPEG‑IMX and Betacam SX tapes. They offer both analog and digital video outputs, optional SDI interfaces, and can be used as a feeder for PC‑based editing.
The operation manual covers important safety warnings, power‑supply requirements, installation procedures, detailed playback controls, menu configuration, UMID and Essence Mark functions, as well as routine maintenance and inspection. An appendix provides full technical specifications and a list of supplied accessories.
| Power requirements | 100 to 240 VAC, 50/60 Hz |
|---|---|
| Power consumption | 55 W |
| Rated current | 0.55 A |
| Dimensions (W×H×D) | 307 × 100 × 397 mm (12 1/8 × 4 × 15 3/4 in) |
| Mass | 8.1 kg (J-10/10SDI) / 8.2 kg (J-30/30SDI) |
| Tape speed (Digital Betacam) | 96.7 mm/s |
| Playback time (Digital Betacam) | 124 minutes (BCT‑D124L cassette) |
| Load/unload time | 7 seconds or less |
| Servo lock time (from standby) | 1.5 seconds or less |
They operate on 100 to 240 VAC, 50/60 Hz, with a rated current of 0.55 A and a power consumption of 55 W.
Load and unload times are 7 seconds or less.
