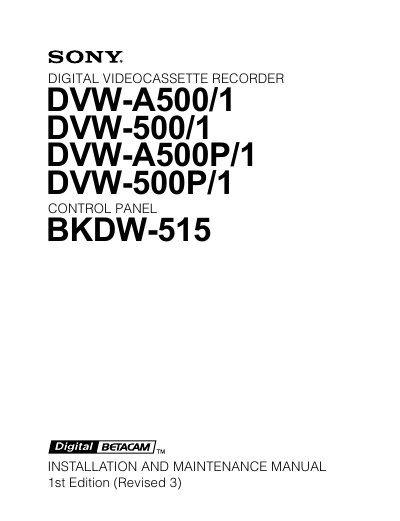

Introduces the installation and maintenance of recorders DVW-A500/1 DVW-500/1 DVW-A500P/1 DVW-500P/1 BKDW-515
This manual provides installation instructions, service information, and maintenance procedures for the Sony DVW series digital videocassette recorders (DVW-A500/1, DVW-500/1, DVW-A500P/1, DVW-500P/1) and the BKDW-515 control panel. It is intended for qualified service personnel only.
The document is organized into sections covering installation of the control panel, replacement of the memory backup battery and EL panel, setup menu details, VTR and panel maintenance menus, a block diagram of the system, and spare‑parts lists with exploded views and packing information.
| Serial number range (DVW models) | 50001 and higher |
|---|---|
| Serial number range (BKDW-515) | 10001 and higher |
Only qualified service personnel should use this manual, as it contains safety warnings for electric shock, fire, and injury.
The spare‑parts list is provided in Section 6 of the manual, including exploded views and packing lists.
