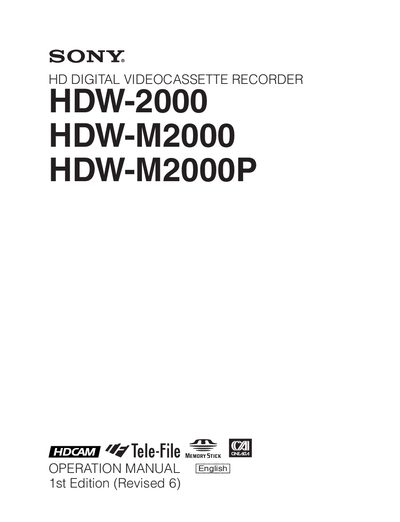

This manual introduces the operating methods of HD DIGITAL VIDEOCASSETTE RECORDER HDW-2000 HDW-M2000 HDW-M2000P.
This manual covers the Sony HDW-2000 series digital videocassette recorders, which record and playback HDCAM as well as Digital Betacam, MPEG IMX, Betacam SX and analog Betacam formats. It describes the unit's high‑definition signal processing, audio handling, and the built‑in HD‑to‑SD downward converter.
The document includes safety warnings, power‑cord specifications for different regions, detailed descriptions of the control panels, editing functions, Tele‑File and UMID features, as well as routine maintenance and inspection procedures.
| Video signal format | HD 4:2:2 component video complying with SMPTE 292M |
|---|---|
| Audio resolution | 20 bit/48 kHz AES/EBU digital audio |
| Digital audio channels | 4 input / 4 output |
| Analog audio channels | 4 input / 4 output |
| Downward converter | HD‑to‑SD conversion (HD to standard‑definition) |
| Power‑cord rating (USA) | Minimum 10 A, 125 V, NEMA 5‑15P plug |
It can play back HDCAM, Digital Betacam, MPEG IMX, Betacam SX and analog Betacam tapes.
It converts the high‑definition signal to standard‑definition outputs such as SDI, analog component and composite.
