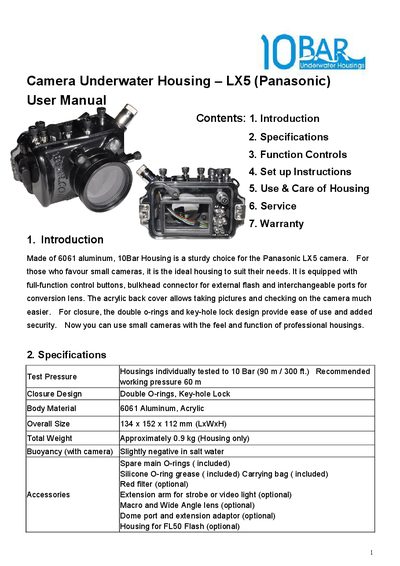

This document introduces the underwater housing for the LX5 camera, including specifications, function controls, setup instructions, use and care of the housing, service, and warranty. The housing is made of 6061 aluminum and is suitable for the Panasonic LX5 camera. It is equipped with full-function control buttons, a bulkhead connector for an external flash, and interchangeable ports for conversion lenses. The acrylic back cover makes it easier to take pictures and check the camera. The double o-rings and key-hole lock design provide ease of use and added security. Now you can use small cameras with the feel and function of professional housings.
This manual introduces the 10Bar LX5 underwater housing, its construction from 6061 aluminum and acrylic, and lists key specifications such as 10 Bar test pressure, double O‑ring closure, and overall dimensions. It also describes the full set of function controls that replicate the camera's buttons while sealed.
The guide walks you through setup, O‑ring maintenance, mounting the Panasonic LX5, using external strobes, and routine cleaning and storage. Service intervals, warranty terms, and contact information are provided for long‑term ownership.
| Test Pressure | 10 Bar (90 m / 300 ft) – recommended working pressure 60 m |
|---|---|
| Closure Design | Double O‑rings, Key‑hole Lock |
| Body Material | 6061 Aluminum, Acrylic |
| Overall Size | 134 × 152 × 112 mm (L × W × H) |
| Total Weight | ≈ 0.9 kg (housing only) |
| Buoyancy (with camera) | Slightly negative in salt water |
The recommended working pressure is 60 m depth.
The O‑ring seal should be inspected before every dive and removed periodically for inspection.
The warranty is valid for two years from the date of first purchase.
