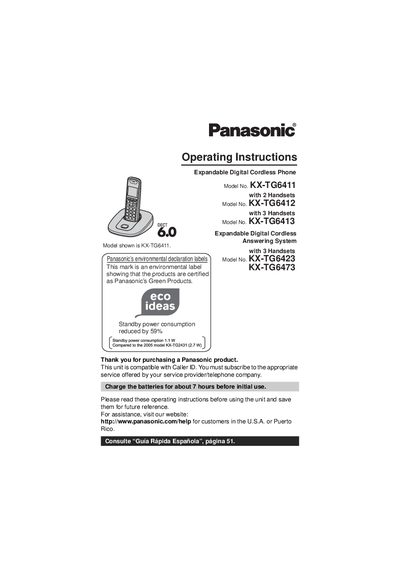

This manual introduces the basic operation of the Panasonic KX-TG6411/2/3 Digital Cordless Phone, including how to set up, use, and maintain the phone.
The manual covers all aspects of the expandable digital cordless answering system, including safety information, accessories, installation, basic operation, programming, and troubleshooting. It explains how to set up the base unit, connect handsets, and use features such as Caller ID, voice mail, intercom, and wall mounting.
Additional sections detail battery handling, power requirements, environmental conditions, and warranty information. The document also provides contact details for Panasonic customer service and parts ordering.
| Standard | DECT 6.0 |
|---|---|
| Frequency range | 1.92 GHz to 1.93 GHz |
| RF transmission power | 115 mW (max) |
| Power source | 120 V AC, 60 Hz |
| Base unit standby power consumption | Approx. 1.1 W |
| Base unit maximum power consumption | Approx. 4.4 W |
| Charger standby power consumption | Approx. 0.1 W |
| Charger maximum power consumption | Approx. 2.6 W |
| Operating temperature range | 0 °C – 40 °C (32 °F – 104 °F) |
| Relative humidity range | 20 % – 80 % (dry) |
Charge the batteries for about 7 hours before initial use.
The system uses rechargeable Ni‑MH AAA (R03) size batteries.
Up to six optional handsets can be registered to a single base unit.
A wall mounting adaptor (order number PQJA10075Z) is provided for wall mounting.
