This document introduces the structure and dimensions, parts numbering system, resistance accuracy, resistance value marking, packaging code, working voltage, power derating curve, rated voltage, resistance range and overload voltage of RC series thin film resistors.

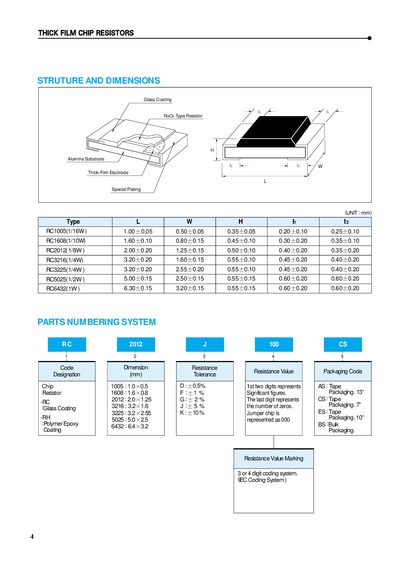

This handbook provides detailed information on thick‑film chip resistors, including physical dimensions, resistance coding, tolerance classes and packaging options. Tables list the size codes (e.g., RC1005, RC1608) together with their length, width, height and lead dimensions.
The document also covers electrical characteristics such as power rating at 70 °C, rated and overload voltages, resistance ranges for each tolerance class, and temperature coefficients. Packaging specifications for tape and reel formats, as well as standard order quantities, are included for manufacturing and assembly use.
| Power Rating (RC1005) | 0.063 W at 70 °C |
|---|---|
| Operating Temperature Range | -55 °C to 125 °C |
| Standard Reel Size (7‑inch) | 5,000 units per reel |
The rated power for RC1005 is 0.063 W at a 70 °C ambient temperature.
Resistors can be supplied on carrier tape (Tape) or in reels (7‑inch, 10‑inch, 13‑inch) compatible with SMD machines.
