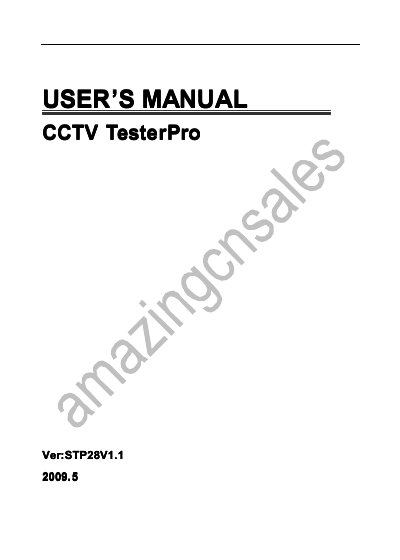

CCTV 28V1.1 Safety Tester User Manual

Introduces the features of CCTV testerPRO, including functions and component composition

Brand: CCTV
Category: Television
Document type: User Manual
Language: English
Pages: 23
File format: PDF
File size: 966 KB
Published: 03 May, 2012
Updated: 30 September, 2023
MD5 checksum: F186B5F95B2FC9484C52B8A44C2BB7A1
PDF: CCTV 28V1.1 Safety Tester User Manual PDF

About this manual

The CCTV 28V1.1 Safety Tester is designed for on‑site installation and maintenance of video monitoring systems. It offers PTZ control, LAN cable testing, and RS‑485/RS‑422 communication, with a 2.8" TFT‑LCD display (960 × 240) for clear operation.

The manual covers safety precautions, battery handling, power supply requirements, and detailed menu functions. It explains how to install the lithium‑polymer battery, connect external power, use the front‑panel keys, and perform address searches for PTZ cameras. Maintenance tips include proper storage, cleaning, and troubleshooting steps.

What's inside

Safety Information
Introduction
Features
Front Panel
Side View
Installing the Battery
Operation
Power On/Off
Menu & Functions
Address Search

Specifications

Display	2.8" TFT‑LCD, 960 × 240 resolution
Power Supply	5 V 2 A
RS‑232 Interface	RS‑232 communication for PTZ

Frequently asked questions

How long can the tester operate on a full charge?

It can last about 11 hours for normal use after charging for 4 hours.

What should be done if the battery becomes very hot?

Power off the tester from the electric source immediately.

Can the tester be used in high‑humidity environments?

No, the tester should not be used where humidity is high.
