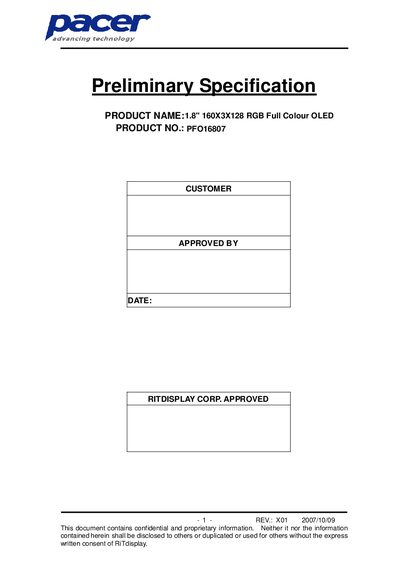

1.8 inch 160x3x128 rgb full color oled pfo16807 product technical specification
This preliminary specification defines the general provisions and quality requirements for the RITDISPLAY 1.8" RGB full‑colour OLED module (product number PFO16807). It includes the scope, warranty terms, key features, mechanical dimensions, maximum ratings, and detailed electrical and electro‑optical characteristics.
The document also provides interface diagrams, power‑on/off sequencing, application circuit guidance, reliability test conditions, external dimensions, packing specifications, and appendices with handling precautions.
| Panel resolution | 160 × 128 |
|---|---|
| Driver IC | SSD1353 |
| Response time | 10 µs |
| Contrast ratio | 2000:1 |
| Viewing angle | 160° |
| Operating temperature range | -40 °C to 70 °C |
| Panel thickness | 2.025 mm (+0.1 mm tolerance) |
| Supply voltage (Vcc) | 10 V – 21 V |
| Normal mode current | 35 – 37 mA |
| Pixel luminance (typical) | 75 – 85 cd/m² |
RITDISPLAY warrants the product for twelve (12) months from the shipping date.
The display operates from –40 °C to 70 °C.
The panel provides a contrast ratio of 2000:1.
The display has a quick response time of 10 µs.
