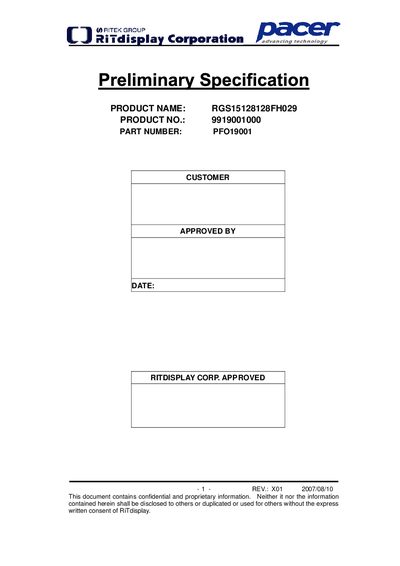

This is the specifications sheet for ritdisplay's rgs15128128fh029 product
This specification defines the general provisions, quality requirements, and technical data for the Ritdisplay RGS15128128FH029 display module. It serves as the highest‑level document for this product, describing its features, mechanical dimensions, and electrical performance.
Key highlights include a small‑molecule OLED panel with 262K/65K colors, a 128×128 matrix, SSD1355 driver IC, 10 µs response time, 1.625 mm thickness, 2000:1 contrast, 160° viewing angle, and an operating temperature range of –40 °C to 70 °C.
| Panel matrix | 128*3*128 |
|---|---|
| Driver IC | SSD1355 |
| Response time | 10 µs |
| Panel thickness | 1.625 mm |
| Contrast ratio | 2000:1 |
| Viewing angle | 160° |
| Operating temperature range | -40 °C to 70 °C |
| Dot size | 0.0435 mm × 0.1855 mm |
| Dot pitch | 0.0685 mm × 0.2055 mm |
| Active area | 26.279 mm × 26.284 mm |
Ritdisplay warrants the product for twelve (12) months from the shipping date.
The display operates from –40 °C to 70 °C.
The display uses the SSD1355 driver IC.
The display has a response time of 10 µs.
