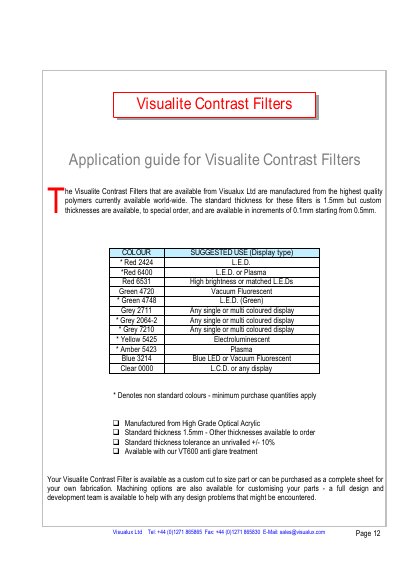

Application guide for Visualite Contrast Filters
This guide introduces the Visualite Contrast Filters offered by Visualux Ltd. The filters are made from high‑grade optical acrylic and are supplied in a standard thickness of 1.5 mm, with custom thicknesses available in 0.1 mm increments. They can be ordered with a VT600 anti‑glare coating and a range of colour options for different display types.
Two installation methods are described. Method A uses a sealant or double‑sided gasket to bond the filter to the front panel, while Method B adds a machined ledge around the filter perimeter for a flush, professional finish. Both methods require a suitable sealant to secure the filter.
| Material | High Grade Optical Acrylic |
|---|---|
| Standard thickness | 1.5 mm |
| Thickness tolerance | ±10 % |
| Anti‑glare coating | VT600 |
| Colour option example | Blue LED or Vacuum Fluorescent Blue |
The standard thickness is 1.5 mm, with a tolerance of ±10 %.
It can be fixed using Method A with a sealant or gasket, or Method B with a machined ledge for a flush finish.
Yes, the VT600 anti‑glare treatment can be applied.
