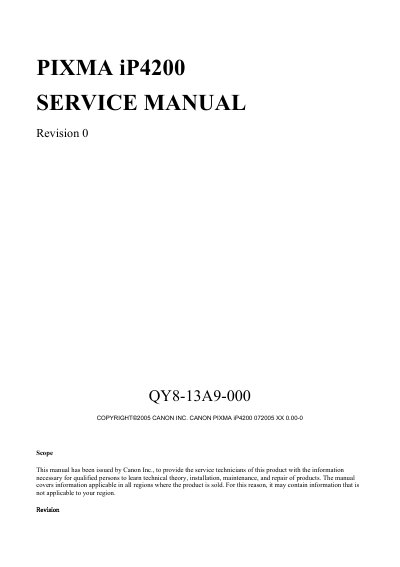

This is a service manual for the Canon PIXMA iP4200 printer
This service manual is intended for qualified service technicians and covers the maintenance, troubleshooting, and repair of the Canon iP4200 desktop inkjet printer. It includes detailed adjustment steps, special tools, error code listings, and an appendix with block diagrams and connector pin layouts.
The document is organized into three parts: Part 1 – Maintenance information, Part 2 – Technical reference (new technologies, cleaning mode, print mode, FAQs), and Part 3 – Appendix with hardware diagrams and full specifications of the printer. This manual is written in Chinese.
| Printer type | Desktop serial color bubble jet printer |
|---|---|
| Resolution | 9,600 × 2,400 dpi (max) |
| Interface | USB 2.0 Hi‑Speed |
| External dimensions (retracted) | ≈ 419 mm × 299 mm × 160 mm (W × D × H) |
| Weight | ≈ 6.5 kg |
Place paper in the ASF and press the Resume/Cancel button.
Perform the waste ink counter reset in service mode using the EEPROM settings.
Print head alignment can be done automatically or manually via driver utilities or the printer’s Resume/Cancel button.
