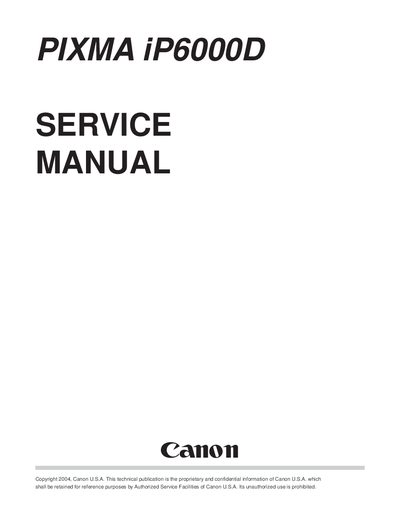

This manual is a maintenance manual for the iP6000D product, which introduces the technical theory, installation, maintenance and repair of the product.
The service manual is intended for qualified service technicians and covers the theory, installation, maintenance, and repair of the PIXMA iP6000D. It is organized into three main parts: Maintenance, Technical Reference, and Appendix, with additional sections for block diagrams, connector locations, and specifications.
Part 1 details adjustment procedures, periodic maintenance, error indications, and repair instructions. Part 2 presents new technologies, cleaning modes, print modes, and a FAQ. Part 3 supplies block diagrams, pin layouts, printer specifications, and print‑media specifications.
| Print head type | Single head with 6 removable ink tanks (each color) |
|---|---|
| Ink colors | Dye‑based black, cyan, magenta, yellow, photo cyan, photo magenta |
Replace the bottom case unit and reset the waste ink counter; the procedure takes about 1 minute.
After a print‑head replacement, run the alignment via the operation panel or through the printer driver on a computer; it takes roughly 3 minutes.
