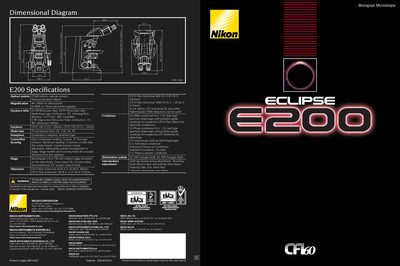

This document describes the dimensional diagram and optical system of a biological microscope, including features and characteristics such as eyepoint height, objectives, eyepieces, nosepiece, condenser, and stage.
The Nikon E200 microscope combines the CFI60 infinity optical system with ergonomic touches for comfortable, long‑hour operation. It offers a magnification range of 40‑1500×, high numerical apertures, and a low‑profile stage that improves specimen handling.
A variety of accessories are available, including binocular and trinocular tubes, eye‑level risers, teaching heads, condensers, and the Digital Sight Series camera system, allowing the microscope to be customized for photomicrography, fluorescence, and polarizing applications.
| Optical system | CFI60 infinity optics |
|---|---|
| Magnification range | 40‑1500× |
| Stage dimensions | 216 mm × 150 mm surface |
| Eyepiece tube inclination | 30° |
| Interpupillary distance range | 47‑75 mm |
The E200 provides a magnification range of 40 to 1500 times.
Yes, the Digital Sight Series camera can be attached to the trinocular tube.
The low‑positioned focus knob, ergonomic binocular tube, and adjustable eye‑level risers provide comfortable, one‑handed operation.
