This product is a WDR tube camera, which adopts SONY Super HAD CCDⅡ sensor, with a resolution of 700 TV lines and a sensitivity of [email protected]. It supports OSD control and can be controlled by buttons, keyboard or remote controller.

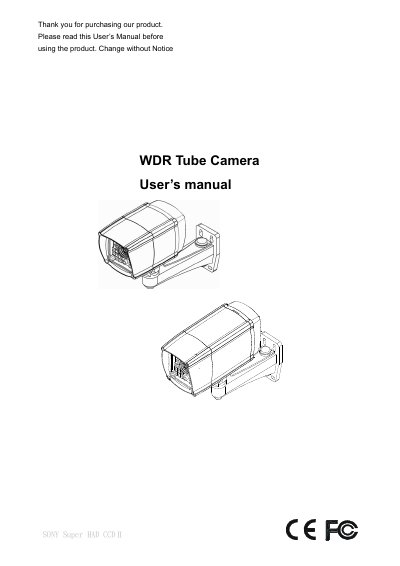

This manual explains how to install, configure, and operate the Sony typeA/typeB WDR Tube Camera. It includes safety notices, power requirements, and wiring details for proper setup.
The camera offers 1/3" double‑density CCD imaging, 700 TV‑line resolution, face detection for up to four faces, privacy masking, and RS‑485 control via Pelco‑D/P protocols. Detailed OSD menus, WDR/BLC settings, and alarm configuration are described throughout the guide.
| Image sensor | 1/3" double‑density CCD |
|---|---|
| Effective pixels (NTSC) | 976 (H) × 494 (V) |
| Resolution | 700 TV lines |
| Minimum illumination | 0.1 Lux @ F1.0 |
| IR distance | 50 m |
| Power source | DC 12 V ±10 % / 1 A, AC 24 V ±10 % / 1 A |
| Dimensions (W×H×D) | 100 mm × 203 mm × 222 mm |
| Weight (net/gross) | 1.74 kg / 2.15 kg |
| Weatherproof rating | IP67 |
| Operating temperature | -10 °C ~ 50 °C |
The camera works with a minimum illumination of 0.1 Lux at F1.0.
It can detect up to four faces simultaneously.
The camera can be powered from DC 12 V ±10 % (1 A) or AC 24 V ±10 % (1 A).
Yes, it has an IP67 rating for dust and water protection.
