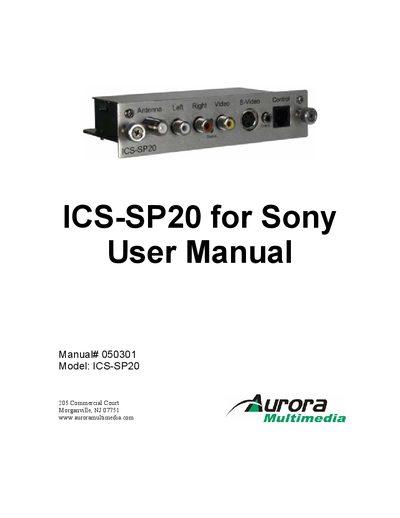

The ICS-SP20 is a high quality TV Tuner/Scaler from Aurora Multimedia that supports advanced functionality such as video format/scan rate conversions, audio effects, Closed Captioning decoding and output, V-Chip functions, cloning capabilities (using the control port), Sleep Timer, etc. The ICS-SP20 expands on the displays capabilities with its own internal menu systems and advanced features.
This manual covers the introduction to the ICS‑SP20 TV tuner/scaler, supported Sony IR remote controllers, and basic key functions. It includes a quick‑start guide, display settings for Sony TVs, LED status indicators, and detailed connection diagrams for video, audio, RF, and service ports.
Further sections describe the operating menu system, channel mapping, specifications, warranty information, and FCC compliance. The document is intended for end users installing the unit with a Sony display and provides troubleshooting tips and safety warnings.
| Color system | NTSC (RF and AV inputs) |
|---|---|
| Scanning format | 525i (480i), 525p (480p) |
| Audio standards | auto‑detection, BTSC‑STEREO, BTSC‑MONO+SAP |
| Dimensions (H × D × L) | 1.25" × 3.25" × 5.25" |
| Weight | ≈0.8 lb (unit only) / ≈1 lb with accessories |
| Video input | RCA composite |
| S‑Video input | Mini DIN 4‑pin |
| Audio inputs | Left/Right RCA Phono |
| RF antenna input | UHF/VHF (coaxial ANT) |
| Service port | RJ11 (Sony service only) |
| IR input | 3.5 mm TRS (Tip‑Signal, Ring‑NC, Sleeve‑Ground) |
The RJ11 connector is for Sony service only and must be left unconnected; connecting it to a phone line can cause damage and void the warranty.
The unit works with Sony IR remote transmitters listed in the manual; these transmitters can control the ICS‑SP20 via the Control‑S output or the built‑in IR sensor.
