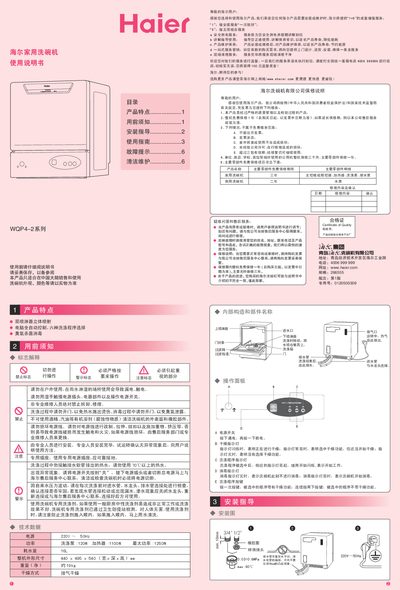

Haier WQP4-2 series dishwasher user manual, introduces product features, usage methods, installation instructions, precautions, fault prompts and other information.
This manual covers everything you need to know before using the Haier WQP4-2 household dishwasher, including safety precautions, installation steps, and how to select the appropriate wash program. It also explains the six available wash cycles, the use of dishwasher‑specific detergent, and the meaning of the indicator lights.
Later sections describe troubleshooting tips, cleaning and maintenance procedures, and the warranty terms for the appliance and its main components. The document is written in Chinese and includes diagrams for proper loading of dishes and for servicing the unit.
| Voltage | 220 V 50 Hz |
|---|---|
| Maximum Power | 1250 W |
| Wash Pump Power | 120 W |
| Heater Power | 1100 W |
| Water Consumption per Cycle | 16 L |
| Dimensions (W×D×H) | 440 mm × 495 mm × 540 mm |
| Net Weight | ≈19 kg |
| Maximum Water Temperature | 60 °C |
The dishwasher offers six different wash program combinations.
