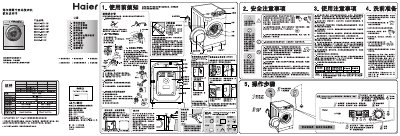

This manual introduces the Haier XQG60 series front‑load washing machine. It covers safety precautions, proper installation of water inlet and drain hoses, and how to set up the machine before first use. Detailed descriptions of the control panel, program selection, and display indicators help users operate the appliance efficiently.
Additional sections explain routine cleaning, troubleshooting common faults, and warranty information. The guide also lists technical specifications such as power supply, water pressure range, capacity, spin speed and noise levels, enabling users to understand the machine’s performance limits. This manual is written in Chinese.
| Power supply | 220V / 50Hz |
|---|---|
| Water pressure | 0.03‑1.0 MPa |
| Rated wash capacity | 6 kg |
| Rated spin capacity | 6 kg |
| Spin speed | 1000 rpm / 1200 rpm |
| Wash noise | 50 dB (A‑weighting) |
| Spin noise | 69 dB (A‑weighting) |
| Energy efficiency class | Class 1 |
| Dimensions (W×D×H) | 840 mm × 570 mm × 595 mm |
Press and hold the lock rod, pull the inlet hose down, insert it into the connector, then release the lock rod until you hear a click.
The washing machine has power‑loss memory; after power is restored it will continue the program from where it stopped.
After draining the water, open the filter door with a flat‑head screwdriver, pull out the filter, rinse it with water, and reinstall it.
Haier provides a three‑year free warranty for household use, with certain conditions excluded.
