IK9094,IL9094,SK9094,SL9094 temperature sensor provides pt100 two-wire temperature sensor interface, can set temperature range, adjustable temperature range 3-30 degrees or 1-15 degrees, has wire break detection function, can be selected via k1 terminal is to adopt hysteresis or storage behavior, IK9094 no isolation, IK9094, SK9094 is 17.5mm wide, IL9094, SL9094 is 35mm wide

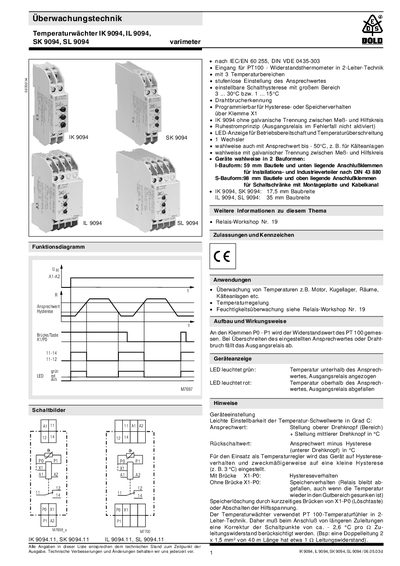

The DOLD temperature watchdog series (IK 9094, IL 9094, SK 9094, SL 9094) monitors temperatures for motors, bearings, heating systems and cold installations. It accepts PT100 resistance sensors, offers adjustable set points, hysteresis and optional galvanic isolation.
The datasheet provides electrical parameters, temperature ranges, power consumption, supply voltage options, contact ratings and mechanical dimensions for each variant. It also lists compliance with IEC/EN standards and available mounting configurations. This manual is written in German.
| Supply voltage | AC/DC 24 V (IL/SL also 230 V) |
|---|---|
| Power consumption | ≈ 0.6 mW |
| Hysteresis adjustment | 1 … 15 °C (continuous) |
| Relay contact rating | 3 A at 230 V AC |
| Dimensions (IK/SK) | 17.5 × 90 × 59 mm |
| Dimensions (IL/SL) | 35 × 90 × 59 mm |
The standard supply is AC/DC 24 V; the IL and SL variants can also be powered from 230 V AC.
Yes, certain variants can be ordered with galvanic separation between the measurement and auxiliary circuits.
