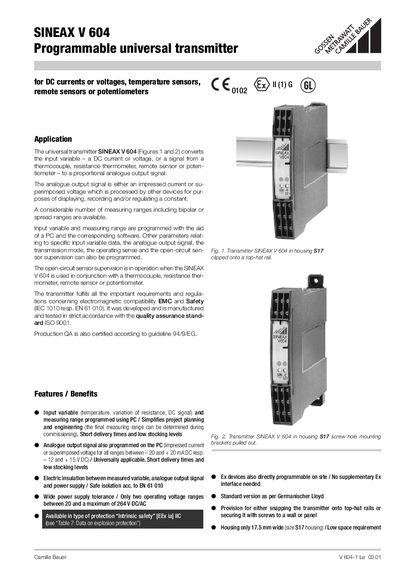

SINEAX V 604 is a programmable universal transmitter for DC currents or voltages, temperature sensors, remote sensors or potentiometers
The SINEAX V 604 is a programmable universal transmitter for DC currents, voltages, temperature sensors, remote sensors or potentiometers. It converts the input variable to a proportional analogue output signal, either an impressed current or a superimposed voltage, and supports a wide range of measuring ranges and power supply tolerances.
The device is programmed via a PC using an RS‑232 interface, the PRKAB 600 programming cable and the VC 600 software. It includes self‑monitoring, open‑circuit sensor supervision, configurable output channels, and optional intrinsic‑safety protection.
| Power supply voltage range | 20 V to 264 V DC/AC |
|---|---|
| Power consumption | < 1.4 W (resp. < 2.7 VA) |
| DC voltage measuring range (direct input) | ± 300 mV |
The green LED is continuously lit in normal operation and flashes when an open‑circuit sensor is detected or the measured variable is out of range.
The transmitter accepts a power supply of 20 V to 264 V DC or AC, with polarity not critical.
