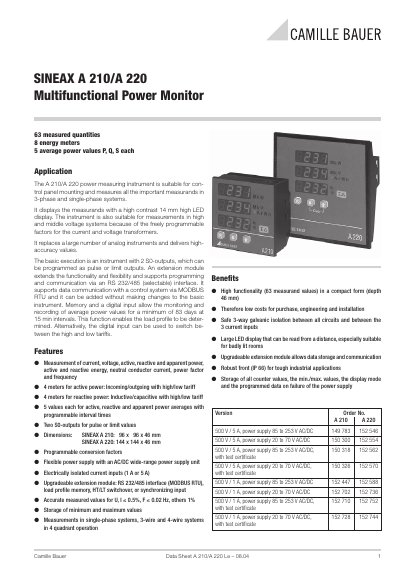

This document is the Camille Bauer A 210/A 220 Multifunctional Power Monitor product datasheet, which introduces the features and characteristics of the product, including measuring current, voltage, active power, reactive power, apparent power, active energy, reactive energy, neutral line current, power factor and frequency.
The A210/A220 power monitor measures up to 63 different quantities, including voltage, current, active, reactive and apparent power, energy and power factor. It features a high‑contrast 14 mm LED display, two programmable S0 outputs, and an optional extension module with RS‑232/RS‑485 (MODBUS RTU) communication.
Designed for control‑panel mounting, the device supports single‑phase and three‑phase systems, offers flexible transformer ratios, and provides up to 83 days of stored average power data at 15‑minute intervals. The front panel is rated IP66 for harsh industrial environments.
| Measured quantities | 63 |
|---|---|
| Energy meters | 8 |
| Dimensions (A210) | 96 × 96 × 46 mm |
| Dimensions (A220) | 144 × 144 × 46 mm |
| Input current rating | 5 A or 1 A |
| Measurement accuracy (voltage) | ±0.5 % |
| Frequency accuracy | ±0.02 Hz |
| IP protection (front) | IP66 |
| IP protection (terminals) | IP20 |
A 14 mm high LED digital display with adjustable brightness is used.
The front panel is rated IP66 for protection against dust and water.
