PF-08ND, PF-08NAD, PF-08PD, PF-08NA, PF-08P, PF-08N are a series of NPN and PNP type photoelectric switches, with a working voltage of 10-30VDC.

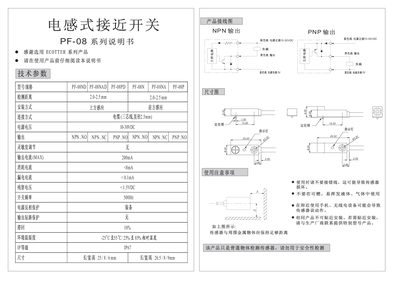

This manual introduces the ECOTTER PF-08 series inductive proximity switches, available with NPN or PNP outputs. It shows the wiring connections, power supply requirements (10‑30 VDC), and output options such as NPN‑NO, NPN‑NC, and PNP‑NO.
Technical parameters are listed, including a detection distance of 2.0‑2.5 mm, output current of 200 mA, switching frequency of 500 Hz, and operating temperature from 25 °C to 59 °C with up to 85 % relative humidity. Safety notes warn against use in combustible or volatile environments and advise keeping sufficient distance from nearby metal objects. This manual is written in Chinese.
| Detection distance | 2.0‑2.5 mm |
|---|---|
| Power supply voltage | 10‑30 VDC |
| Output current | 200 mA |
| Residual voltage | <15 VDC |
| Switching frequency | 500 Hz |
| Operating temperature | 25 °C – 59 °C |
| Output type | NPN‑NO, NPN‑NC, PNP‑NO |
| Output short‑circuit protection | None |
| Sensitivity adjustment | None |
| Cable diameter | 2.0 mm |
The PF-08 requires a DC power supply of 10 to 30 V.
No, the sensor must not be used in combustible or volatile liquids or gases.
The PF-08 is offered with NPN‑NO, NPN‑NC, and PNP‑NO output types.
