This document is about the PF-06 series photoelectric switch, which introduces its features and characteristics, including technical parameters and external dimensions.
The PF-06 series is an inductive proximity switch designed for detecting the presence of metal objects without physical contact. It offers NPN and PNP output options and is suitable for a variety of industrial automation applications.

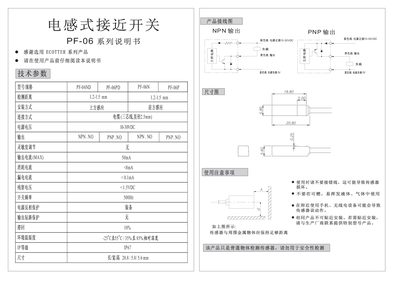

The manual lists key technical parameters such as a detection distance of 12‑1.0 mm, a 10 V DC supply voltage, 50 mA output current, 500 Hz switching frequency, and an IP67 protection rating. It also includes wiring diagrams, installation methods (top‑side or front‑side sensing), and important safety precautions for use in hazardous environments. This manual is written in Chinese.
| Detection distance | 12‑1.0 mm |
|---|---|
| Power supply voltage | 10 V DC |
| Output type | NPN, PNP, NEN |
| Output current | 50 mA |
| Switching frequency | 500 Hz |
| Operating temperature range | 23‑59 °C |
| Protection rating | IP67 |
| Leakage current | <0.1 mA |
| Residual voltage | <1 VDC |
The sensor can detect metal objects at a distance of 12‑1.0 mm.
