The UPB series tension sensor adopts a sealed and anti-corrosion design, and its integrated structure greatly improves its frequency response performance. The output signal has the characteristics of good linearity and fast response. UPB series tension sensors are sturdy, durable, anti-corrosion, dustproof, and stable. It can still provide high sensitivity output under low tension conditions. The built-in temperature compensation network eliminates the need for additional temperature compensation devices. The separate installation greatly simplifies the installation process. The UPB series tension sensors have a variety of specifications and installation methods, which are widely used in printing, compounding, coating, cutting, papermaking, rubber, textile, wire and cable and film rolling control equipment and production lines.
The UPB series tension sensors are designed for high sensitivity and durability in harsh environments. They feature sealed construction, corrosion resistance, and can be installed in various orientations to measure force at angles ranging from horizontal to vertical.

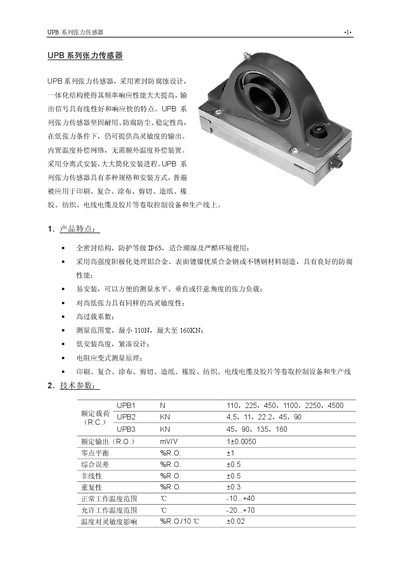

The manual includes detailed technical parameters such as measurement range, output characteristics, temperature limits, and IP protection, as well as mounting dimensions for each model and step‑by‑step installation instructions. This manual is written in Chinese.
| Measurement range | 110 N – 160 kN |
|---|---|
| Rated output (R.O.) | 1 + 0.0050 mVV |
| Operating temperature range | -10 °C to +40 °C |
| Excitation voltage | 10 VDC (min) – 15 VDC (max) |
| Ingress protection (IP rating) | IP65 / IP66 |
The sensor can measure forces from a minimum of 110 N up to a maximum of 160 kN.
The sensor is rated IP65 and IP66 for protection against dust and water.
