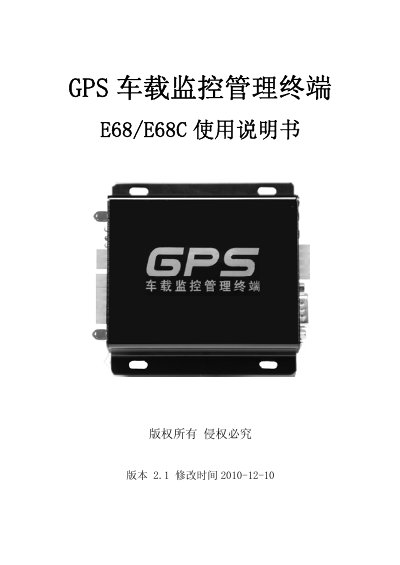

E68/E68C is a car monitoring management terminal that can track and monitor the whole process of the vehicle through the phone, which is convenient for management and effectively improves work efficiency.
The E68/E68C vehicle monitoring terminal provides satellite positioning, mobile map tracking, photo capture, voice communication, and customizable detection lines for remote vehicle management. It supports functions such as real‑time location, speed, mileage, electronic fence, emergency alarm, and optional accessories like a camera, LCD dispatch screen, and LED advertising panel.
The document includes a detailed overview of the hardware components, installation and wiring instructions, key technical specifications, troubleshooting steps, and warranty information to help users set up and maintain the device safely and effectively. This manual is written in Chinese.
| Reacquisition time | <1 second |
|---|---|
| Hot start time | <3.5 seconds |
| Cold start time | 42 seconds |
| Speed resolution | 1 m/s |
| Positioning accuracy | 2.5 m CEP |
| Speed limit | 350 km/h |
| Working voltage | DC12V±1V or DC24V±2V |
| Working current (12 V) | <100 mA |
| Standby current (12 V) | <50 mA |
| Operating temperature | -20 °C to 60 °C |
| Relative humidity | <95 % |
| Dimensions | 115 mm × 105 mm × 28 mm |
Send an SMS in the format “12345#90*phone_number#” to the terminal; a confirmation message will be returned indicating the number has been set.
The device operates on DC12 V ± 1 V or DC24 V ± 2 V.
The terminal can record speeds up to 350 km/h.
