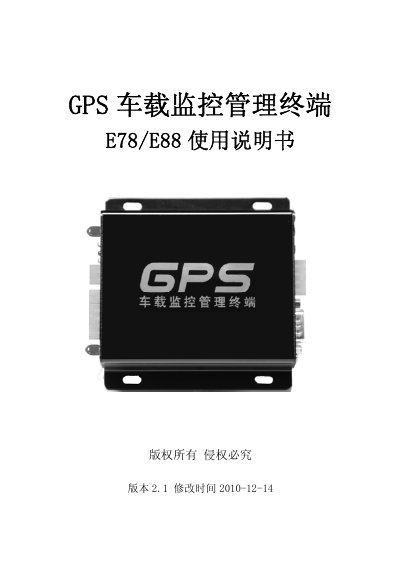

E78/E88 Car Monitoring Management Terminal is a car terminal that can remotely monitor the moving vehicle. It has satellite positioning, mobile phone car search, photo function, vehicle monitoring, navigation function (E88 only), voice broadcast, hands-free voice function and custom detection line functions.
The GPS E78/E88 is a vehicle‑mounted monitoring terminal that provides satellite positioning, mobile‑phone vehicle lookup, photo capture, voice prompts, and customizable detection lines. It enables real‑time tracking of vehicle location, speed, mileage and offers functions such as electronic fences, overspeed alerts and emergency assistance.
The manual details the main hardware components, installation steps, wiring diagrams, technical specifications, fault diagnosis and after‑sales service policies, helping users set up and operate the terminal safely and efficiently. This manual is written in Chinese.
| Reacquisition time | <1 s |
|---|---|
| Hot start time | <3.5 s |
| Cold start time | 42 s |
| Speed resolution | 1 m/s |
| Positioning accuracy | 2.5 m CEP1 |
| Maximum speed limit | 350 km/h |
| Working voltage | DC12V±1V or DC24V±2V |
| Working current | <500 mA (12 V) / <250 mA (24 V) |
| Standby current | <400 mA (12 V) / <200 mA (24 V) |
| Operating temperature | -20 °C to 60 °C |
| Relative humidity | <95 % |
| Dimensions | 115 mm × 105 mm × 28 mm |
Insert the SIM card according to the instructions in section 5.1 “手机卡安装”.
The terminal’s speed limit is set to 350 km/h.
