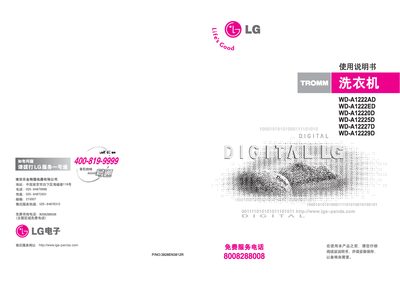

The LG WD‑A12229D washing machine manual provides comprehensive safety guidelines, installation instructions, and operating procedures. It covers key features, program selections, and maintenance tips to ensure reliable performance.
Additional sections include wiring diagrams, water‑pressure requirements, transport‑bolt removal, and warranty information, helping users set up and service the appliance correctly. This manual is written in Chinese.
| Voltage / Frequency | 220V~, 50Hz |
|---|---|
| Dimensions (W×D×H) | 600 mm × 550 mm × 850 mm |
| Wash power consumption | 140 W |
| Heating power consumption | 1860 W |
| Drying power consumption | 1240 W |
| Standard water consumption per cycle | 90 L |
| Spin speeds | 400/800/1000/1200 rpm |
| Wash noise level | 57 dB(A) |
| Spin noise level | 70 dB |
| Required water pressure | 30 kPa – 1000 kPa |
The machine operates with a water pressure between 30 kPa and 1000 kPa.
Four transport bolts are provided to protect the machine during shipping.
The whole machine is covered by a one‑year warranty; the motor is covered for ten years and the control board for three years.
It requires a 220 V, 50 Hz power supply.
