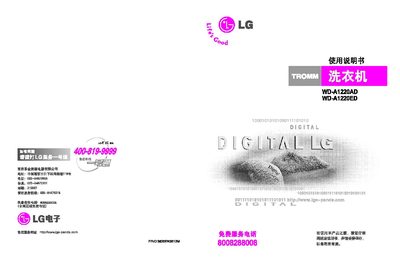

This manual provides safety guidelines, installation steps, and operating instructions for the LG WD‑A1220AD front‑load washing machine. It covers program selection, child lock, maintenance, and troubleshooting.
Detailed specifications, wiring diagrams, and warranty information are included, along with instructions for connecting water supply, grounding, and removing transport bolts. This manual is written in Chinese.
| Model | WD‑A1220AD |
|---|---|
| Dimensions (W×D×H) | 600 mm × 550 mm × 850 mm |
| Weight | 67 kg |
| Maximum Wash Capacity | 7.5 kg |
| Maximum Dry Capacity | 4 kg |
| Standard Water Consumption | 90 L |
| Spin Speed Options | 400/800/1000/1200 rpm |
| Power Supply | 220 V~, 50 Hz |
| Standard Water Pressure | 30 kPa ~ 1000 kPa |
The water pressure should be between 30 kPa and 1000 kPa.
Four transport bolts are supplied for safe transportation.
The machine can wash up to 7.5 kg of laundry per cycle.
The whole machine is covered by a one‑year warranty.
