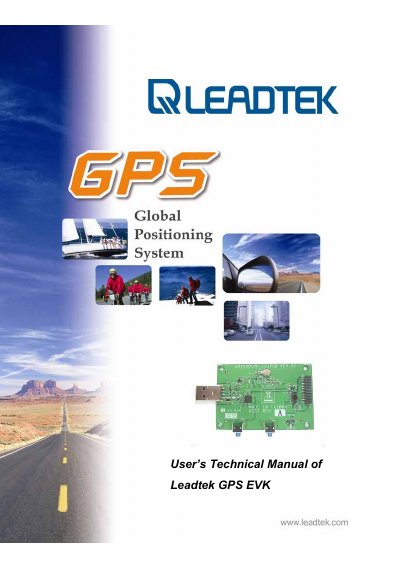

This document introduces the function and characteristics of Leadtek GPS LR9500 EVK, including basic information, technical specifications, mechanical dimensions, functional descriptions and so on.
The Leadtek GPS EVK User Manual provides an overview of the evaluation kit, its supported GPS modules, and basic product features. It includes a description of the hardware layout, mechanical dimensions, and functional components such as the USB power input, status LEDs, and reset controls.
The guide walks users through step‑by‑step procedures for connecting the kit, operating the G‑Monitor software, measuring start‑up times, and installing the required USB driver. An appendix supplies the full schematic of the EVK board. This manual is written in Chinese.
| Power Input | DC 3.3V |
|---|---|
| PC Interface | TTL to USB |
| Size (L×W×H) | 87.9 × 53.3 × 11.05 mm |
| Weight | 16 g |
Use the GPS EVK together with the G‑Monitor software, click the Initialize Data Source button, then start the measurement; the software will record the start‑up times.
The green LED shows power status, while the red LED indicates GPS data output status.
