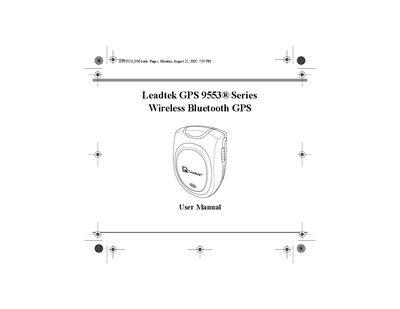

This manual provides information about the product features, applications, and usage of the Leadtek GPS 9553 Series Wireless Bluetooth Receiver.
This manual introduces the Leadtek GPS 9553 Series wireless Bluetooth receiver, a compact GPS device with SiRFStarIII chipset and Bluetooth connectivity for smartphones, PDAs, and other portable devices. It outlines the product’s features, applications, and package contents.
The guide covers getting started, charging and changing the removable Li‑polymer battery, installing software, connecting to Bluetooth devices, and using navigation functions such as viewing NMEA output and signal levels. Safety cautions, warranty information, and a FAQ section are also included.
| Chipset | SiRF Star III |
|---|---|
| Channels | 20 channels with All‑In‑View tracking |
| Cold start time | 42 seconds |
| Dimensions | 61.4 mm × 42.3 mm × 25.4 mm |
| Weight | 45 g with battery |
| Battery type | Removable Li‑polymer battery |
| LED indicators | Two LEDs for Bluetooth and GPS status |
Press the tab at the back and slide the battery in the direction of the arrow, making sure it is inserted correctly.
Do not use the cigarette lighter adapter while starting the car, as a high‑voltage spike may damage the product.
