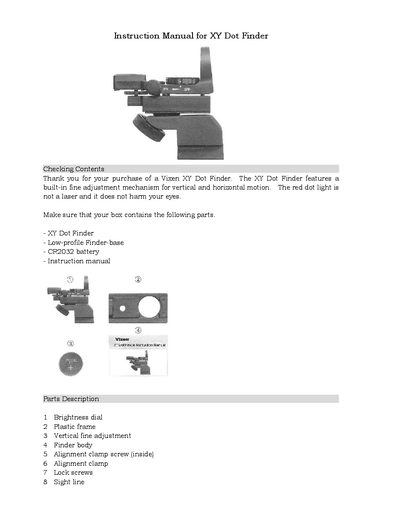

This document is an instruction manual for the Vixen XY Dot Finder, describing the features and characteristics of the product, including the built-in fine adjustment mechanism for vertical and horizontal motion, the non-laser red dot light that does not harm the eyes. The document also lists the included parts and provides descriptions of each component.
This manual explains how to install, align, and operate the Vixen XY Dot Finder, a telescope accessory with a built‑in fine adjustment mechanism for vertical and horizontal motion. It includes a parts list, safety notes, and step‑by‑step procedures for attaching the finder to a telescope tube.
Key features covered are the adjustable red‑dot brightness dial, battery replacement with a CR2032 cell, optional low‑profile finder‑base with a 1/4‑20 thread, and tips for daytime use and alignment adjustments.
| Battery type | CR2032 |
|---|---|
| Thread size (low‑profile base) | 1/4‑20 |
| Adjustment mechanism | Built‑in fine adjustment for vertical and horizontal motion |
| Red‑dot type | Not a laser, eye‑safe |
Turn the brightness dial to the off position, open the battery container cover, push down the rim to squeeze out the old CR2032, insert a fresh battery, and close the cover.
Loosen the finder‑bracket fixing screw, insert the dovetail mounting block into the telescope tube, then tighten the fixing screw securely.
