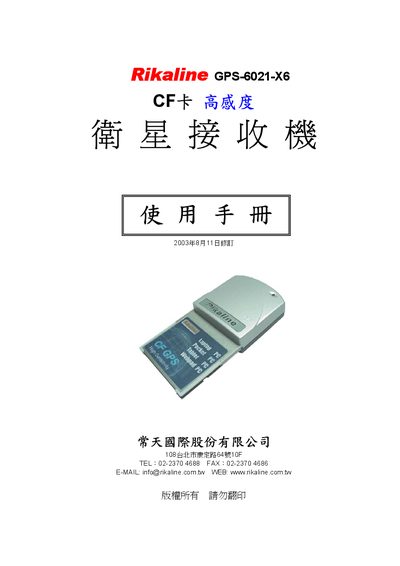

Rikaline GPS-6021-X6 is a high-sensitivity satellite receiver that supports first- and second-generation CF card slots and can be used with various computers or handheld devices.
The Rikaline GPS-6021-X6 is a high‑sensitivity CF‑card satellite receiver designed for automotive navigation, security systems, mapping and agricultural applications. It supports up to 12 satellites, provides position updates once per second and includes WAAS/EGNOS for 1‑5 m accuracy.
The manual covers quick start procedures, hardware interfaces (RS‑232/TTL, PCMCIA), installation of the PCMCIA adapter, configuration of NMEA output strings, and specifications such as operating temperature, power requirements and battery life. This manual is written in Chinese.
| Dimensions (L×W×H) | 83.0 mm × 47.5 mm × 14.5 mm |
|---|---|
| Operating Temperature | -40 °C ~ 85 °C |
| Storage Temperature | -55 °C ~ +100 °C |
| Input Voltage | 2.5 V ~ 5.5 V DC |
| Backup Battery | 3 V Li‑ion, up to 767 h (31 days) discharge |
| Receiver Sensitivity | -145 dBm |
| Simultaneous Satellite Tracking | 12 satellites |
| Position Update Rate | 1 Hz (once per second) |
| Interface | RS‑232 or TTL, selectable baud rates 4800/9600/19200/38400 bps |
| NMEA Output Sentences | GGA, GLL, GSV, GSA, RMC, VTG |
Cold start takes about 45 seconds, warm start about 38 seconds, and hot start about 8 seconds.
The device operates from a DC supply of 2.5 V to 5.5 V.
Without DGPS correction the CEP is 5‑25 meters.
