MCR-IV module is used to convert the input 4~20mA DC current signal into 0~2V DC voltage signal. It has a simple peripheral circuit and high accuracy grade, which can be used for high-precision transmitter circuits.
The MCR‑IV module converts an input 4‑20 mA DC current signal into a 0‑2 V DC voltage signal. It is designed for high‑accuracy transmitter loops and includes a simple external circuit.

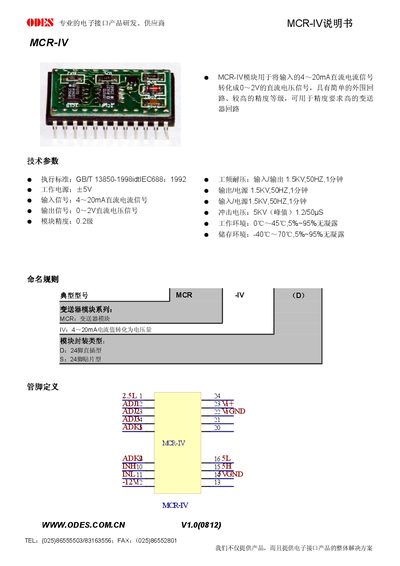

The manual provides technical parameters, naming conventions, pin definitions and reference circuit information, along with operating and storage environment limits. This manual is written in Chinese.
| Standard | GB/T 13850-1998 / IEC 688:1992 |
|---|---|
| Power Supply | 5 V |
| Output Signal | 0‑2 V DC |
| Accuracy | 0.2 level |
| Operating Temperature | 0 °C – 45 °C, 5%‑95% non‑condensing |
| Storage Temperature | -40 °C – 70 °C, 5%‑95% non‑condensing |
| Surge Voltage | 5 kV (peak) |
| Power Frequency Withstand | 1.5 kV, 50 Hz, 1 min |
The module provides a 0‑2 V DC voltage output.
The module accuracy is rated at 0.2 level.
