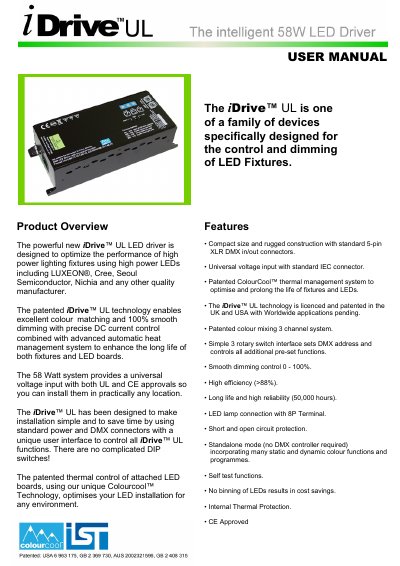

The iDrive™ UL is one of a family of devices specifically designed for the control and dimming of LED Fixtures. It features compact size, rugged construction, standard 5-pin XLR DMX in/out connectors, universal voltage input, patented ColourCool™ thermal management system, patented colour mixing 3 channel system, and more.
The iDrive UL is a compact, rugged 58 W LED driver designed to optimise performance of high‑power LED fixtures such as LUXEON®, Cree, Seoul Semiconductor and Nichia. It offers universal voltage input, patented ColourCool™ thermal management, smooth 0‑100 % dimming and both DMX and standalone operation.
This manual explains how to connect the driver, set DMX addresses, use the built‑in preset programmes, and understand the safety features such as wiring‑fault indication, thermal protection and short/open‑circuit protection. Wiring diagrams, terminal assignments and detailed specifications are provided for proper installation and maintenance.
Use the three rotary switches to select a start address between 001 and 510.
If the internal temperature exceeds 65 °C, the thermal protection shuts the unit off and automatically restarts it once the temperature falls back to normal.
It is designed for fixtures containing between 18 and 36 RGB LEDs.
