GA-H61M-D2P-B3 LGA1155 main-board Manual

The GA-H61M-D2P-B3 is an LGA1155 motherboard that supports Intel® Core™ i7 series processors/Intel® Core™ i5 series processors/ Intel® Core™ i3 series processors/Intel® Pentium® processors/ Intel® Celeron® processors. This manual provides guidance on hardware installation, BIOS configuration, and driver installation.

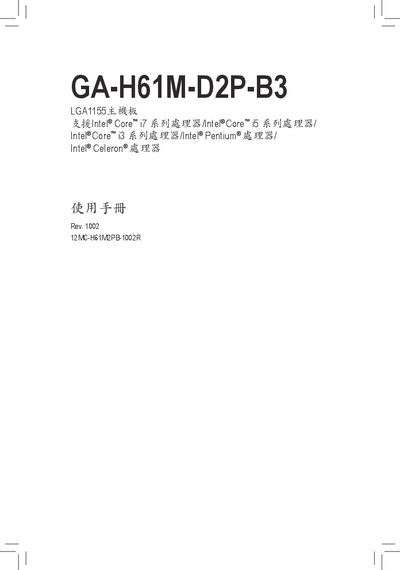

GA-H61M-D2P-B3 LGA1155 main-board Manual - cover page
Brand
GA-H61M-D2P-B3
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
40
File format
PDF
File size
10.3 MB
Published
09 April, 2012
Updated
29 September, 2023
MD5 checksum
72C042E9152351B92A3B8ECF5CC8ED74
PDF
GA-H61M-D2P-B3 LGA1155 main-board Manual PDF

About this manual

This manual guides users through safe hardware installation, BIOS configuration, and system setup for the GA-H61M-D2P-B3 motherboard. It includes precautions, connector descriptions, and recommended tools for assembling the board.

The document also lists detailed product specifications such as supported CPUs, memory capacity, I/O ports, and chipset features, and provides warranty terms and contact information for technical support. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • BIOS Setup
  • MB Intelligent Tweaker
  • Standard CMOS Features
  • Advanced BIOS Features
  • Integrated Peripherals
  • Power Management
  • PC Health Status
  • Product Specifications
  • Warranty

Specifications

CPU SocketLGA1155

Frequently asked questions

What is the warranty period for the GA-H61M-D2P-B3?

The product is covered by a three‑year warranty.

Which CPU socket is used on the GA-H61M-D2P-B3 motherboard?

It uses an LGA1155 socket for Intel processors.
