GA-H67A-USB3-B3 LGA1155 main-board Manual

GA-H67A-USB3-B3 motherboard user manual, introduces the hardware installation and BIOS configuration settings

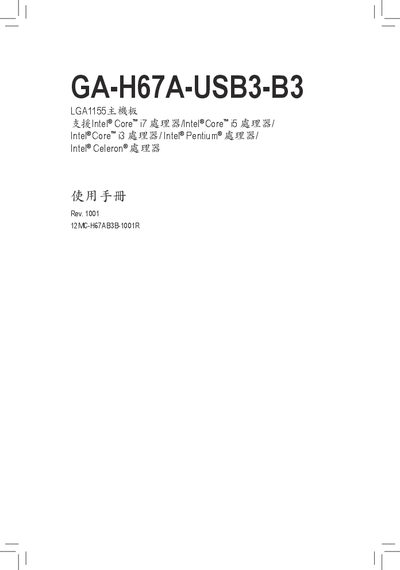

GA-H67A-USB3-B3 LGA1155 main-board Manual - cover page
Brand
GA-H67A-USB3-B3
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
104
File format
PDF
File size
29.3 MB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
9DCC6EFC3B44759A0344F92D9BAD2AB7
PDF
GA-H67A-USB3-B3 LGA1155 main-board Manual PDF

About this manual

This manual covers the complete setup of the GA-H67A-USB3-B3 motherboard, including CPU, memory, storage, and peripheral installation. Detailed instructions are provided for installing the processor, attaching cooling fans, mounting memory modules, and connecting expansion cards.

The guide also explains BIOS features such as power management, health monitoring, and password protection, as well as utilities for BIOS updates (Q‑Flash, @BIOS) and software tools like EasyTune and Dynamic Energy Saver. A troubleshooting section helps resolve common issues. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • CPU Installation
  • Memory Module Installation
  • Expansion Card Installation
  • BIOS Features
  • Power Management Setup
  • PC Health Status
  • BIOS Update Methods
  • Audio and Video Settings
  • Troubleshooting

Specifications

CPU SocketLGA1155
Memory TypeDDR3 (800/1066/1333 MHz)
LAN ControllerRealtek RTL8111E
BIOSDual BIOS

Frequently asked questions

What memory speeds can the motherboard handle?

The board works with DDR3 memory at 800 MHz, 1066 MHz, or 1333 MHz.

Download PDF (29.3 MB)
