Optical Fibre patchcords are a defining factor in ensuring your network performs to the highest level
The FibreFab 62.5/125 (OM1) optical fibre patchcords are designed for high‑performance networking, offering a range of connector types and a robust manufacturing process that ensures low attenuation and reliable operation. Each patchcord is individually packaged, fully traceable, and supplied with test certification.

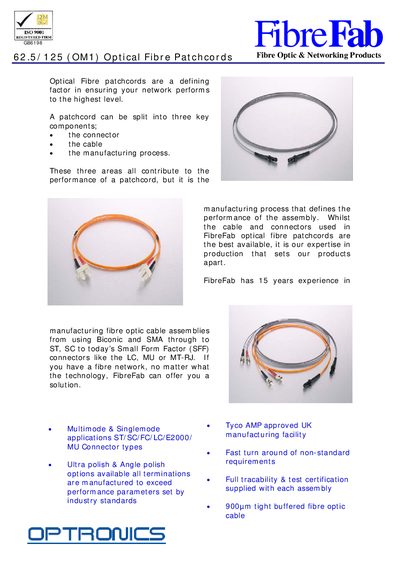

The leaflet provides technical specifications such as mechanical attenuation, bandwidth, insertion loss, operating temperature, fire performance, and packaging details, as well as ordering information for various connector configurations and lengths.
| Insertion loss (Multimode) | Max 0.3 dB, Typical 0.2 dB |
|---|---|
| Insertion loss (MT‑RJ) | Max 0.5 dB |
| Operating Temperature | -40°C to +85°C |
| Cable type | 900 µm tight buffered fibre optic cable |
| Packaging colour | Yellow |
The maximum insertion loss for multimode connectors is 0.3 dB.
The patchcords operate from –40 °C to +85 °C.
