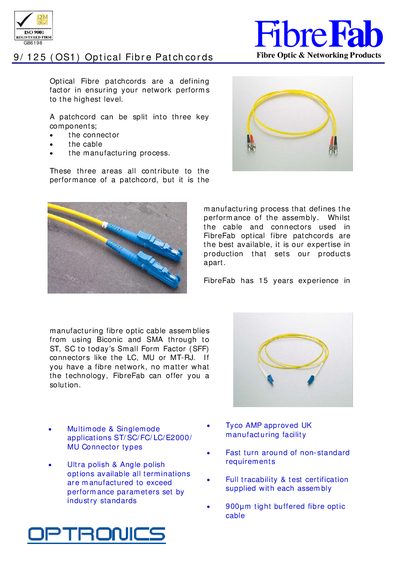

Optical Fibre patchcords are a defining factor in ensuring your network performs to the highest level. A patchcord can be split into three key components; the connector, the cable, and the manufacturing process. These three areas all contribute to the performance of a patchcord, but it is the manufacturing process that defines the performance of the assembly. Whilst the cable and connectors used in FibreFab optical fibre patchcords are the best available, it is our expertise in production that sets our products apart. FibreFab has 15 years experience in GB6198 Fibre Optic & Networking Products FibreFab 9/125 (OS1) Optical Fibre Patchcords manufacturing fibre optic cable assemblies from using Biconic and SMA through to ST, SC to today’s Small Form Factor (SFF) connectors like the LC, MU or MT-RJ. If you have a fibre network, no matter what the technology, FibreFab can offer you a solution. Multimode & Singlemode applications ST/SC/FC/LC/E2000/ MU Connector types. Ultra polish & Angle polish options available all terminations are manufactured to exceed performance parameters set by industry standards Tyco AMP approved UK manufacturing facility Fast turn around of non-standard requirements Full tracability & test certification supplied with each assembly 900µm tight buffered fibre optic cable Connector Specification Optical Performance (Singlemode) Insertion loss: Max. 0.3 dB Typical 0.2 dB Return Loss: UPC > 50dB, APC >60dB Optical Performance (MT-RJ) Insertion loss:
The Optronics 9/125 (OS1) optical fibre patchcords are designed for high‑performance networking, combining quality connectors, cable, and a precise manufacturing process. FibreFab manufactures the assemblies and offers a range of connector types such as FC/APC, SC, ST, LC, and MT‑RJ.
The leaflet lists key specifications including mechanical attenuation, insertion loss, return loss, operating temperature, and flame‑resistance compliance. It also details packaging, traceability, and ordering information for lengths from 1 m to 10 m with various sheath colours and connector configurations.
| Mechanical Attenuation (dB/km) | 0.38/0.24 |
|---|---|
| Length range | 1 m to 10 m |
| Insertion loss (Singlemode) max | 0.3 dB |
| Return loss (Singlemode) UPC | > 50 dB |
| Insertion loss (MT‑RJ) max | 0.5 dB |
| Operating temperature | -40 °C to +85 °C |
| Flame resistance | IEC 60332‑1 |
| Compliance | EC 874‑14 |
| Cable type | 900 µm tight buffered fibre optic cable |
The maximum insertion loss for singlemode connectors is 0.3 dB.
The patchcords operate from –40 °C up to +85 °C.
