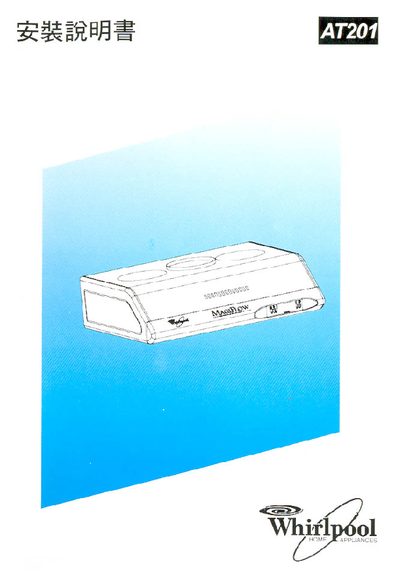

The Whirlpool AT201 Installation Manual provides step‑by‑step instructions for installing the AT201 range hood in a kitchen environment.
It includes safety warnings, wiring requirements, dimensions, performance specifications, and after‑sales service contact information.
| Model | AT201 |
|---|---|
| Net Weight | 11.2 kg |
| Gross Weight | 13 kg |
| Dimensions (D × H × W) | 520 × 165 × 600 mm |
| Packing Dimensions (D × H × W) | 597 × 250 × 668 mm |
| Electrical Specification | 220V~240V 50Hz |
| Transmission | Twin Motor |
| Outlet Pipe Diameter | 150 mm |
| Lighting System | 60W, Bulb |
| Exhaust Flow | 12 m³/min |
| Motor Load | 110 W |
The AT201 requires a power supply of 220 V to 240 V at 50 Hz.
The hood measures 520 mm depth, 165 mm height, and 600 mm width.
The exhaust flow rate is 12 m³ per minute.
