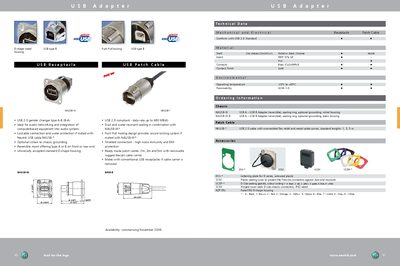

The Neutrik NAUSB-W USB A-USB B adapter is reversible, has a sealing ring, optional grounding, nickel housing, and is ideal for audio networking and integration of computer-based equipment into audio systems.
The NAUSB-W is a reversible D‑shape USB type‑A to type‑B (and B‑to‑A) adapter with a push‑pull locking mechanism. It provides a lockable, water‑protected connection and a shielded link for high noise immunity, making it suitable for audio networking. The NKUSB-* series are matching USB 2.0 patch cables (1 m, 3 m, 5 m) with a rugged die‑cast carrier and optional grounding screen.
Technical data include USB 2.0 compliance with up to 480 MBit/s data rate, operating temperature from –25 °C to +85 °C, gold‑plated contacts, and UL94‑V0 flammability rating. Ordering information lists the NAUSB‑W and NKUSB‑* variants with housing finishes and optional accessories.
| Data rate | up to 480 MBit/s |
|---|---|
| Operating temperature | -25 °C to +85 °C |
| Contact finish | Gold |
| Flammability rating | UL94 V‑0 |
It supports USB 2.0 data rates up to 480 MBit/s.
The adapter operates from –25 °C to +85 °C.
Yes, it features a lockable connection and water protection when mated.
The contacts are gold‑plated.
