GA-3PXSL-RH AMD Socket AM2 Motherboard USER S MANUAL

This is the user manual of GA-3PXSL-RH motherboard.

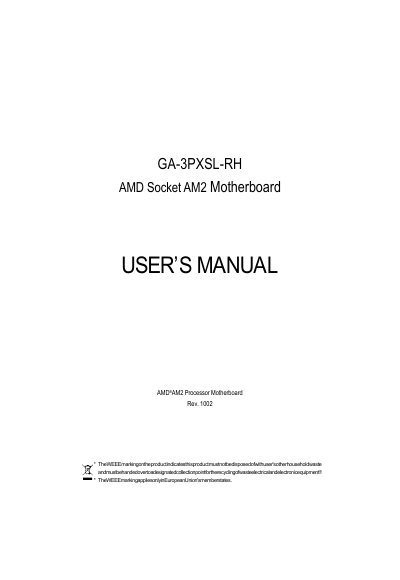

GA-3PXSL-RH AMD Socket AM2 Motherboard USER S MANUAL - cover page
Brand
GA-3PXSL-RH
Category
Motherboard
Document type
User Manual
Language
English
Pages
70
File format
PDF
File size
521 KB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
5F28817D50E69CE37D83CBDD1954B8F7
PDF
GA-3PXSL-RH AMD Socket AM2 Motherboard USER S MANUAL PDF

About this manual

This manual covers the Gigabyte GA-3PXSL-RH ATX motherboard designed for AMD® Opteron™ 1000 series (Socket AM2) processors. It details the board’s components, safety precautions, and step‑by‑step hardware installation procedures.

Key sections include hardware installation (CPU, memory, expansion cards, connectors), BIOS configuration, driver installation for NVIDIA, Marvell, and DirectX, and an appendix of acronyms and specifications.

What's inside

  • Introduction
  • Hardware Installation Process
  • BIOS Setup
  • Application Driver Installation
  • Appendix

Specifications

Form FactorATX (12" x 9.6")
CPU SocketAMD Opteron 1000 series (Socket AM2)
ChipsetNVIDIA GeForce 6150
Memory4 DDRII‑533/667 slots, up to 16 GB
PCI Slots3 × 32‑Bit/33 MHz (5 V)
SATA Connectors4 × SATAII
USB Ports6 × USB 2.0
LAN Ports2 × RJ45
Onboard LANMarvell 88E8056 / 88E1116 GbE
Download PDF (521 KB)
