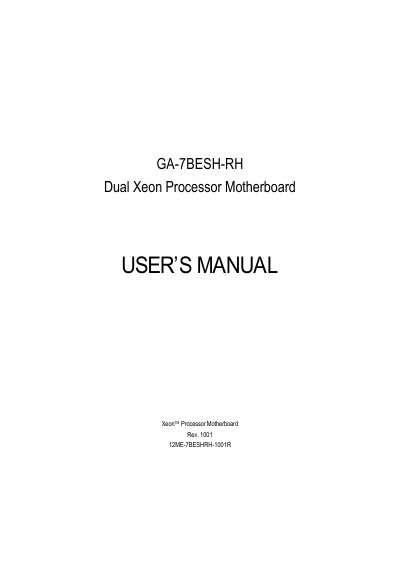

This document is the user manual for the GA-7BESH-RH dual Xeon processor motherboard. The manual provides information on the features and components of the motherboard, hardware installation process, BIOS setup, driver installation, etc.
This user manual covers the GA-7BESH-RH dual‑Xeon processor motherboard, detailing its features, component layout, hardware installation steps, BIOS configuration, and driver installation procedures. It also includes a technical reference section with block diagrams and an appendix of acronyms.
The document is organized into chapters for introduction, hardware installation, BIOS setup, technical reference, driver installation, and appendices, providing clear guidance for system builders and technicians.
| Form factor | EATX |
|---|---|
| CPU support | Dual Intel Xeon processors (LGA 771) |
| Memory slots | 8 x 240‑pin DIMM sockets |
| Maximum memory | 32 GB (533/667 MHz) |
| Chipset | Intel 5000P |
| PCI slots | 1 × 32‑bit/33 MHz PCI |
| PCI‑X slots | 2 × 64‑bit/100 MHz PCI‑X |
| PCI‑Express slots | 3 × PCI‑Express x8 |
| SATA connectors | 6 × SATA |
| USB ports | 7 × USB 2.0 |
| LAN ports | 2 × Gigabit Ethernet |
It provides eight 240‑pin DIMM sockets, supporting up to 32 GB of memory.
The board supports dual Intel Xeon processors in an LGA 771 socket.
There are three PCI‑Express x8 slots on the motherboard.
The board includes dual Gigabit Ethernet ports provided by the Intel ESB2E chipset.
