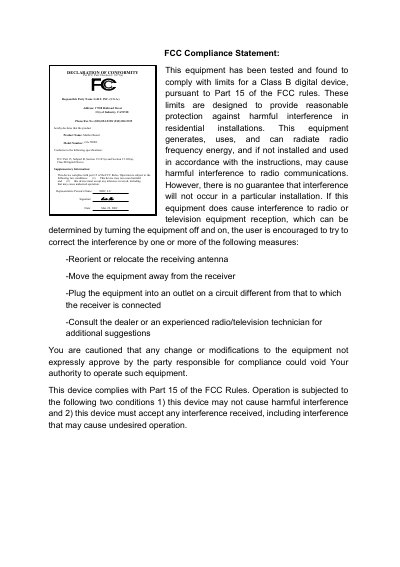

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Move the equipment away from the receiver -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/television technician for additional suggestions You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void Your authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation.
This guide walks users through the complete installation of the 7DXE ATX motherboard, covering unpacking, component identification, mounting, connector wiring, and BIOS configuration. It also includes a version‑change log, accessory checklist, and troubleshooting forms.
The document lists detailed specifications such as supported AMD Athlon/Athlon XP/Duron Socket A CPUs, ATX form factor dimensions, chipset details, memory and expansion slot configurations, and built‑in audio, USB, and IDE interfaces, helping builders verify compatibility before assembly.
| Form factor | ATX (30.5 cm x 24.5 cm) |
|---|---|
| CPU support | AMD Athlon / Athlon XP / Duron (K7) Socket A |
| Front Side Bus | 200 MHz / 266 MHz |
| IDE interfaces | 2 × IDE channels, PIO mode 3‑4, UDMA 33/ATA 66/ATA 100 |
| Floppy connector | 1 × floppy socket supporting 360 KB‑2.88 MB drives |
| BIOS | Award BIOS, 2 Mbit flash memory |
The board supports AMD Athlon, Athlon XP and Duron (K7) processors that use Socket A.
The installation steps are detailed in the "安裝指南 主機板安裝指南" section of the guide.
After updating, restart, press to enter BIOS, select "LOAD SETUP DEFAULTS" and confirm with "Y" to restore default settings.
