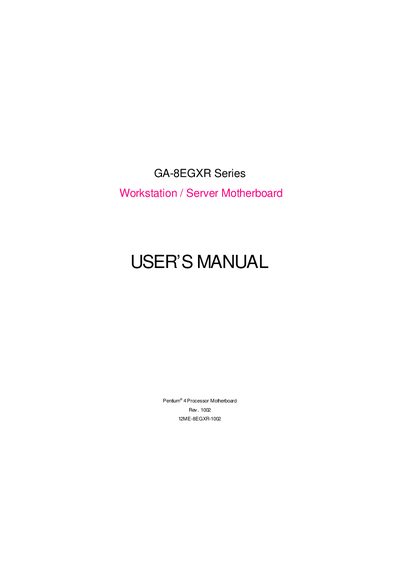

GA-8EGXR series workstation/server motherboard user manual, introducing the features and installation and use methods of the motherboard.
This manual provides step‑by‑step instructions for installing the GA-8EGXR Series motherboard, including CPU, memory, expansion cards, and ribbon‑cable connections. Safety precautions for handling delicate IC components and static‑electricity protection are also detailed.
The document includes a BIOS configuration guide, a summary of hardware features such as the ATX form factor, Intel 82540EM Gigabit LAN, Serverworks chipset, and on‑board peripherals, as well as an appendix of acronyms and a technical support/RMA sheet.
| Form Factor | ATX 30.48 cm x 24.38 cm |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 |
| Chipset | Serverworks CMIC‑SL Northbridge / Serverworks CSB6 Southbridge |
| On‑board LAN | Intel 82540EM 10/100/1000 Gigabit Ethernet |
| USB Ports | 4 USB ports (2 front, 2 rear) |
| On‑board SCSI | Adaptec 7899W Dual‑Channel Ultra‑160 |
It uses a Socket 478 designed for Intel Pentium 4 processors.
The motherboard provides four USB ports – two on the front panel and two on the rear.
It follows the ATX form factor with dimensions 30.48 cm × 24.38 cm.
