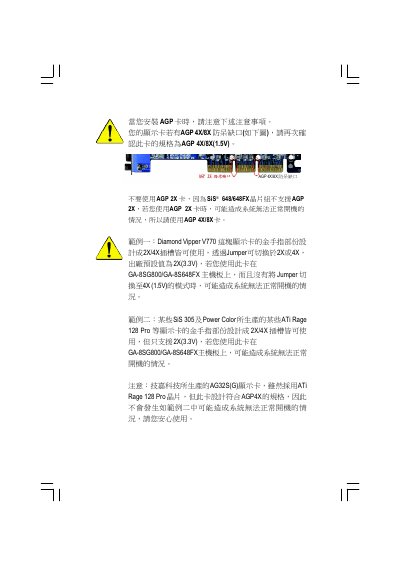

This document describes the installation precautions for AGP cards on the GA-8SG800/GA-8S648FX motherboard.
This manual provides step‑by‑step instructions for installing the GA‑8SG800/GA‑8S648FX motherboard, including CPU placement, memory module installation, connector wiring and BIOS configuration. It also lists the supported hardware such as Pentium 4 processors, DDR memory types and AGP graphics cards.
Additional sections cover power‑supply connections, peripheral ports, troubleshooting tips and compliance information required for regulatory approval. The document is written in Chinese and includes diagrams of the board layout and jumper settings.
| CPU Socket | Socket 478 |
|---|---|
| Supported CPUs | Intel® Pentium® 4 (Northwood, 0.13 µm) with HT Technology |
| Chipset | SiS 648 / SiS 648FX |
| Memory Types | DDR400 / DDR333 / DDR266 DIMM (2‑channel, up to 3 GB) |
| AGP Slot | AGP 8X/4X (3.3 V) |
| PCI Slots | 5 PCI 2.2 compliant slots (33 MHz) |
| USB Ports | USB 2.0/1.1 (2 ports on board, up to 4 via headers) |
The board supports Intel® Pentium® 4 processors (Northwood, 0.13 µm) with Hyper‑Threading technology.
It accepts DDR400, DDR333 and DDR266 DIMM modules, up to a total of 3 GB.
The motherboard includes two USB 2.0/1.1 ports on the back panel and additional header pins for up to four more ports.
It provides an AGP 8X/4X slot operating at 3.3 V.
