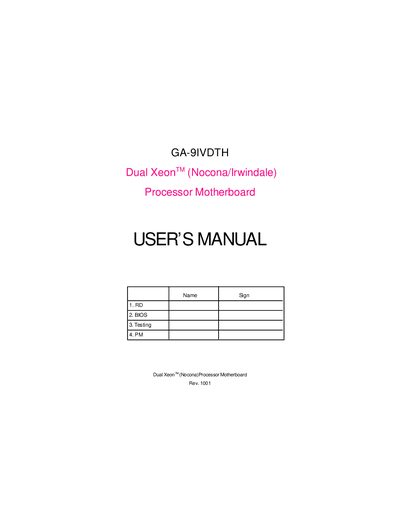

This document is the user's manual for GA-9IVDTH motherboard. It introduces the features, hardware installation process, BIOS setup, technical reference and driver installation.
This manual provides detailed instructions for installing and configuring the GA-9IVDTH Dual Xeon processor motherboard. It includes safety precautions, hardware installation steps, BIOS configuration, and driver installation procedures.
The document also contains technical reference data, specifications, and an appendix of acronyms, as well as a support/RMA sheet for troubleshooting and warranty information.
| Form Factor | 30.5 cm x 33 cm Extend ATX size |
|---|---|
| CPU Socket | Dual socket 604 for Intel Xeon (Nocona/Irwindale) processors |
| Memory Support | Supports up to 24 GB DRAM (Max) for DDR‑266, 6× 184‑pin DDR DIMM sockets |
| Chipset | Intel E7320 Chipset |
| On‑Board SATA RAID | Supported |
| LAN | Dual Intel 82541 LAN Chipset |
The board includes three PCI slots that support 32/33 MHz (5 V).
