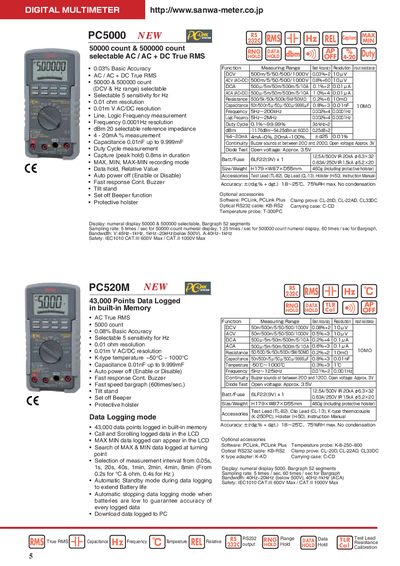

The document introduces the features and characteristics of a digital multimeter called PC520M. The multimeter features AC True RMS, 5000 counts, 0.08% basic accuracy, selectable 5 sensitivity for Hz measurement, 0.01 ohm resolution, 0.01mV AC/DC resolution, K-type temperature measurement ranging from -50°C to 1000°C, capacitance measurement range from 0.01nF to 9.999mF, auto power off, fast response continuity buzzer, fast speed bargraph display, tilt stand, set off beeper, and protective holster. Additionally, the multimeter has a data logging mode with a built-in memory that can log 43000 data points. The logged data can be viewed and scrolled on the LCD screen, and the maximum and minimum data can also be displayed on the screen. The maximum and minimum logged data points can be searched, and the measurement interval can be selected from 0.05s, 1s, 20s, 40s.
The Sanwa PC5000 manual describes the multimeter’s measurement functions, including AC/AC+ DC True RMS voltage, 0.01 Ω resistance resolution, frequency, capacitance and dBm measurements. It also explains the data‑logging mode that can store up to 43 000 measurement points in internal memory and how to transfer data via the RS‑232 interface.
Safety information, accessory lists (test leads, holster, software) and detailed technical data such as digit count, basic accuracy, voltage ranges and IEC safety categories are provided to help users operate the instrument safely and accurately. This manual is written in German.
| Digit count | 50000 & 500000 selectable |
|---|---|
| Basic accuracy (DCV) | 0.0396 % + 2 d |
| True RMS capability | AC/AC+ DC True RMS |
| Resistance resolution | 0.01 Ω |
| Voltage range | DCV 500 mV – 1000 V |
| Capacitance range | 0.01 nF – 9.999 mF |
| Maximum current | 12.5 A / 500 V |
| Safety category | IEC 61010 CAT I 600 V Max / CAT II 1000 V Max |
The multimeter can store up to 43 000 measurement points in its internal memory.
Yes, it provides AC/AC+ DC True RMS voltage measurement.
The basic accuracy for DC voltage is 0.0396 % + 2 d.
