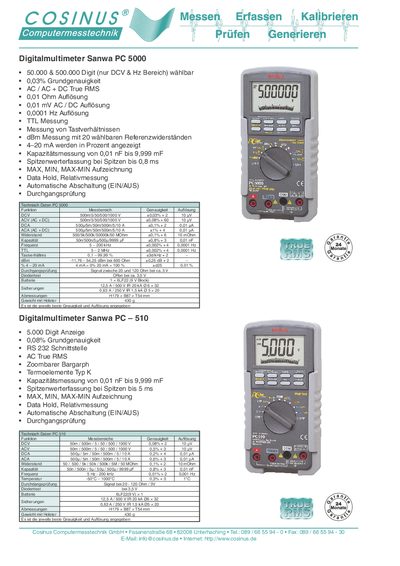

Cosinus Digital Multimeters Sanwa PC 5000 and Sanwa PC 510 offer high accuracy, high resolution and many measurement functions.
The Cosinus PC 5000 digital multimeter provides 5 000‑digit display, true‑RMS AC/DC measurement, and a range of functions such as dBm measurement, 4‑20 mA percentage display, and capacitance measurement from 0.01 nF to 9 999 µF. It includes an internal memory for up to 43 000 measurement values and an RS‑232 interface for PC data export.
The device is powered by a single 9 V 6LF22 battery, measures 179 mm × 87 mm × 54 mm, and weighs 430 g with its holster. Safety features include automatic shutdown, continuity testing, diode test, and overload protection. This manual is written in German.
| Display Digits | 5 000 |
|---|---|
| Basic Accuracy | 0.0396 % |
| Resolution (Ohm) | 0.01 Ω |
| Resolution (Voltage) | 0.01 mV |
| Frequency Resolution | 0.0001 Hz |
| True RMS | Yes |
| Battery | 1 × 6LF22 (9 V block) |
| Dimensions (H × B × T) | 179 mm × 87 mm × 54 mm |
| Weight (with holster) | 430 g |
| Internal Memory Capacity | Up to 43 000 measurements |
| Communication Interface | RS‑232 |
The multimeter can store up to 43 000 measurement values in its internal memory.
Data can be exported via the RS‑232 serial interface.
Yes, it provides true‑RMS measurement for AC and AC+DC signals.
It uses a single 9 V 6LF22 battery.
