HB-LTS10KA is a high-efficiency energy-saving transformer regulation and current-boosting device that outputs 0-10KA sine-wave current. It has peak current, effective value current, time testing function and timing 0.01S-99.99H trip function, peak, effective value one-key conversion, and automatically lock the maximum peak value. It has an embedded digital electronic millisecond meter.
The HB-LTS10KA large‑current generator is designed for high‑current testing such as current transformer, AC drive and other applications. It features an efficient voltage regulator, a compact imported boost transformer, and functions for peak/current measurement, timing and automatic trip.

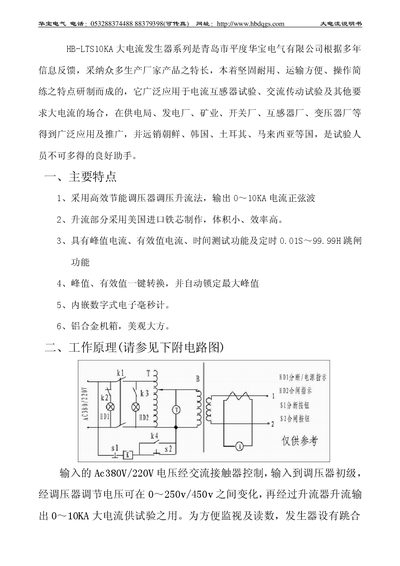

The manual provides detailed wiring diagrams, step‑by‑step usage instructions, technical specifications, safety precautions, accessory list and warranty information to help users install, operate and maintain the equipment safely. This manual is written in Chinese.
| Input Voltage | AC 380V/220V 50Hz |
|---|---|
| Output Current Range | 0‑10 kA |
| Peak Current Measurement Range | 0‑15.00 kA |
| Effective Current Measurement Range | 0‑10.00 kA |
| Timer Range | 0.01 s – 99.99 h |
| Weight | ≈ 80 kg |
The unit accepts either 380 V or 220 V AC at 50 Hz as input.
The timer is set with a dial; it can be programmed from 0.01 seconds up to 99.99 hours.
Press the reset key before adjusting the current down; the display will then lock the new lower value.
Do not adjust the regulator with no load, reset the regulator before impact tests, avoid operating the unit under load without proper wiring, and never disconnect load while powered.
