HB-BKS Automatic Closed Cup Flash Point Tester is a high-precision instrument with features such as color LCD display, automatic control, automatic display of flash point temperature, and automatic printing of test results.

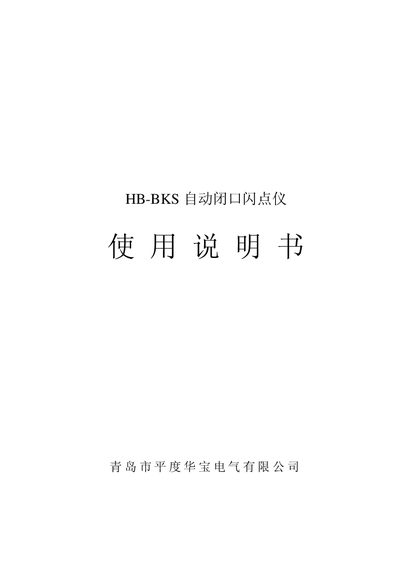

The HB‑BKS automated closed‑mouth flash‑point instrument is a high‑precision tester developed by Huabao Electric Co. It features a color LCD, touch‑screen operation, automatic heating, auto‑cover opening, auto‑ignition, fan cooling, pressure calibration, result printing and storage. The manual describes its technical parameters, structure and safety precautions.
The guide walks the user through installation, power connection, sample preparation, parameter setting, test execution, self‑diagnostics, record management, printer paper replacement, and routine maintenance. Detailed page‑by‑page functions and key button operations are explained to ensure reliable flash‑point measurements. This manual is written in Chinese.
| Temperature measurement range | 29°C ~ 250°C |
|---|---|
| Flash‑point tolerance at 110°C | ±25°C |
| Internal‑point tolerance >110°C | ±4°C |
| Detection method | Thermocouple differential detection |
| Ignition method | Electronic automatic ignition |
| Cooling method | Fan cooling |
| Power consumption | < 350 W |
| Power supply | AC 220 V |
| Fuel type and pressure | Gas or LPG, 0.2–0.5 MPa |
Place the sample cup in the heater, then on the flash‑point test page click the “启动” (Start) button; the instrument will automatically perform heating, ignition and measurement.
Open the printer front cover, remove the old paper roll, install a new roll with the correct direction, close the cover, then press the paper‑feed key to feed the paper until it emerges from the printer head.
From the main menu select “仪器自检”, then click each test item (cover, fan, heater, solenoid valve, ignition wire, flash sensor, temperature correction) to verify proper operation.
