The L904001 ionizing air gun is a lightweight, handheld device that cleans and neutralizes small or sensitive parts by delivering a static‑eliminating airflow. It is supplied together with the L904002 high‑voltage power supply, which provides the necessary voltage for ionization.

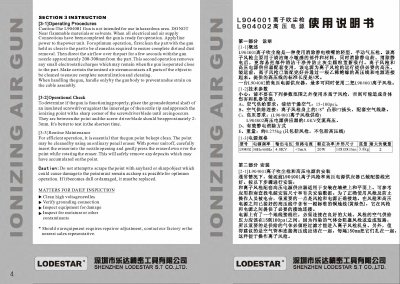

The manual covers operating procedures, routine maintenance, daily inspection checks, power‑supply specifications, and step‑by‑step installation of the gun and power unit. Safety cautions, air‑supply requirements, and grounding instructions are also included.
| Air supply pressure | 15–100 psi |
|---|---|
| Gun weight (without cable) | 0.275 kg |
| Power supply output voltage | 4.0 kV AC |
| Power supply frequency | 60 Hz |
| Power supply dimensions | 165 × 103 × 115 mm |
| Cable length options | 3 m or 6 m |
| Air supply connector | 1/8" male PT connector |
Turn the power unit off, insert an ordinary pencil eraser into the nozzle opening and gently press while rotating the eraser to remove deposits.
The gun requires clean, dry air at a pressure between 15 and 100 psi.
